Anti-Corrosion Rugged Camera
耐腐蝕鋁合金攝影機

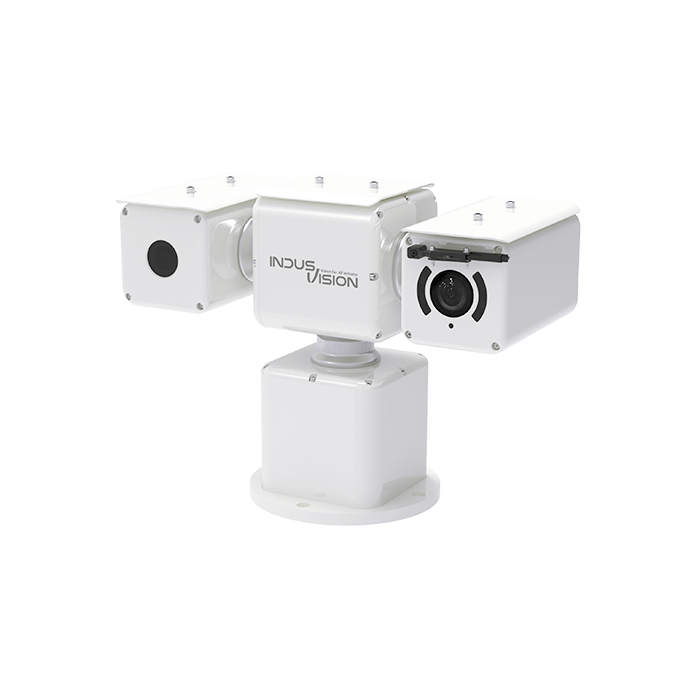

iCUBE-PD-100
Rugged Pan/Tilt Dual System Thermal & Optical 36X Zoom Camera
  點此圖進入了解

    Features

  • High Quality Aluminum Die-Casting Body
  • Salty Water Spray Test : KS C IEC 60068-2-52
  • Corrosion Resistance / Chemical Resistance Powder Coating Finish
  • 100% All Gear Mechanism structure : Suitable for Heavy Vibration Environment
  • Ingress Protection Rating : IP66
  • Full HD 2MP, 1/1.9" High Sensitivity STARVIS CMOS Sensor
  • Optical 36X(6~216mm) Zoom Lens & Digital 32X Zoom
  • 640 (h) x 512 (v) Resolution, 19mm or 13mm Lens
  • Thermal Sensitivity of Detector (NETD) s50mk@f#1.0
  • Germanium Glass for Thermal Camera
  • High Performance, Hybrid Infra-red LED, Visible Distance Max. 100m
  • Minimum I|luminance : 0.002Lux / OLux (IR IED On)
  • Pan / Tilt Range : 360∘Endless/ +90∘~ -90∘(360 Endless:Option)
  • Pan / Tilt Speed : 0.025~120∘/sec
  • 256 Presets / 8Tours / 8Groups / 8Swings
  • Support ONVIF / Supprt RS485

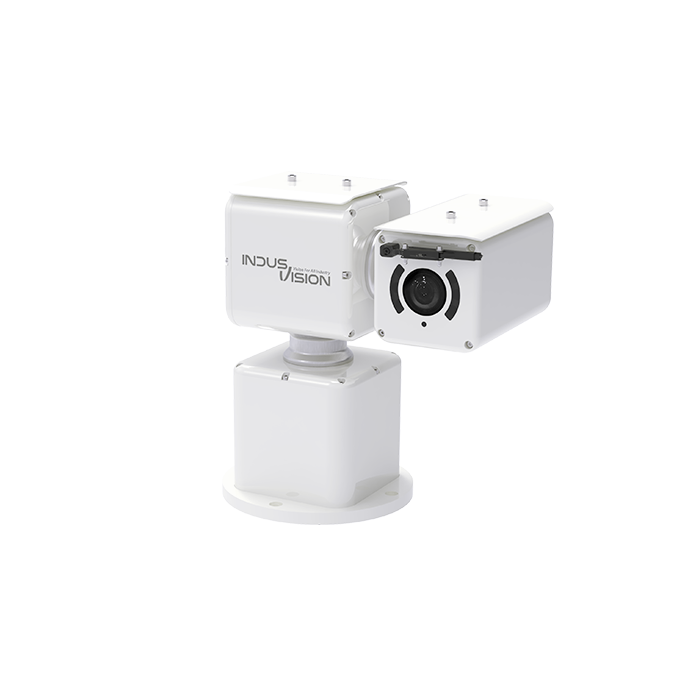

iCUBE-PS-100
Rugged Pan/Tilt System 2MP 36X Zoom Camera  點此圖進入了解

    Features

  • High Quality Aluminum Die-Casting Body
  • Salty Water Spray Test : KS C IEC 60068-2-5
  • Corrosion Resistace / Chemical Resistance Powerder Coating Finish
  • 100% All Gear Mechanism structure : Suitable for Heavy Vibration Environment
  • Ingress Protection Rating : IP66
  • Full HD 2MP, 1/1.9" High Sensitivity STARVIS CMOS Sensor
  • Pan / Tilt Range : 360∘ Endless / +90 ∘~ -90∘(360∘Endless:Option)
  • Pan / Tilt Speed : 0.025∘~120∘/sec
  • Focal Length / Zoom : 6~216mm / Optical 36x & Digital 32x
  • High Performance, Hybrid Infra-red LED, Visible Distance Max. 100m
  • 256 Presets / 8 Tours / 8Groups / 8Swings
  • Support ONVIF / Supprt RS485

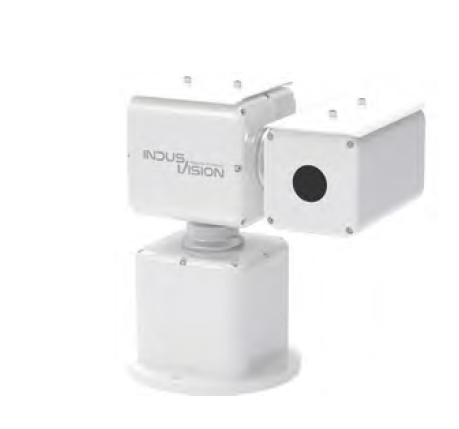

iCUBE-PS-100T
Rugged Pan/Tilt System Thermal Camera
Explosion proof camera
  點此圖進入了解

    Features

  • High Quality Aluminum Die-Casting Body
  • Salty Water Spray Test : KS C IEC 60068-2-5
  • Corrosion Resistace / Chemical Resistance Powerder Coating Finish
  • 100% All Gear Mechanism structure : Suitable for Heavy Vibration Environment
  • Ingress Protection Rating : IP66
  • 640 (h) x 512 (v) Resolution, 19mm or 13mm Lens
  • Thermal Sensitivity of Detector (NETD) s50mk@f#1.0
  • Germanium Glass for Thermal Camera
  • Pan / Tilt Range : 360∘Endless / +90 ∘~ -90∘(360∘ Endless:Option)
  • Pan / Tilt Speed : 0.025∘~120∘/sec
  • 256 Presets / 8Tours / 8Groups / 8Swings
  • Support ONVIF / Supprt RS485

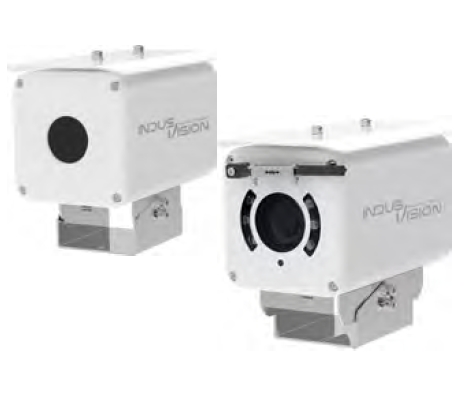

iCUBE-PF-100(T)
Rugged Fixed System Thermal /36X Zoom Camera


  點此圖進入了解

    Features

  • High Quality Aluminum Die-Casting Body
  • Salty Water Spray Test : KS C IEC 60068-2-52
  • Corrosion Resistance / Chemical Resistance Powder Coating Finish
  • Ingress Protection Rating : IP66
  • Germanium Glass for Thermal Camera
  • Full HD 2MP, 1/1.9" High Sensitivity STARVIS CMOS Sensor
  • Optical 36X(6~216mm) Zoom Lens & Digital 32X Zoom
  • 640 (h) x 512 (v) Resolution, 19mm or 13mm Lens
  • Thermal Sensitivity of Detector (NETD) s50mk@f#1.0
  • High Performance, Hybrid Infra-red LED, Visible Distance Max. 100m
  • Minimum Illuminance : 0.002Lux / OLux (IR IED On)
  • Model
  • iCUBE-100 : Optical Camera / iCUBE-100T : Thermal Camera






““““““““““
