I Explosion Proof Network Cable for Harzardous Area
iVEX-EMC-A302
特點 Key Features
- FTP Cat.5e, Armored Braid Shielded, Urethane Special TPU / PUR
- For Use In Highly Corrosive Environments
- Oil, Fuel, Hydrocarbons Resistant
- Flame resistant, Zero Halogen Free and RoHS
- Flame resistant, Zero Halogen Free and RoHS
- -50°C +80°C Rated Temperature

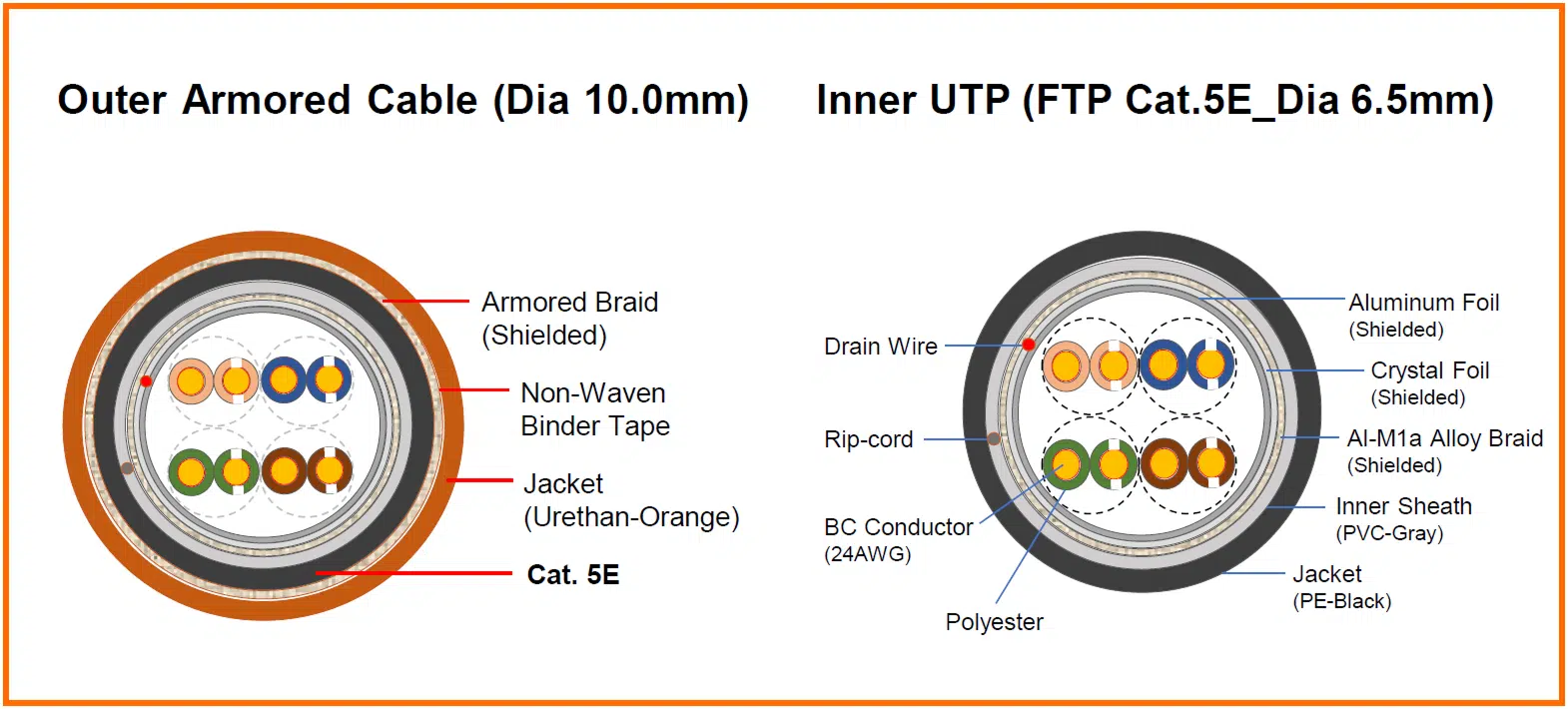

CROSS SECTION OF CABLE
SPECIFICATIONS
| Category | Item | Division | Standard |
|---|---|---|---|
| Inner UTP | Inner conductor | Material | Bare Copper |
| Diameter | 0.5 ± 0.01mm (24AWG) | ||
| Insulation (Dielectric) | Material | Color-coded PE (Polyethylene) | |
| Thickness | ≥ 0.18mm | ||
| Diameter | 0.91 ± 0.01mm | ||
| Shielded Layer | First Layer | Aluminum Foil | |
| Second Layer | Crystal Foil | ||
| Third Layer | Al-Ma Alloy or CCA Braid | ||
| Inner sheath | Material | New PVC | |
| Color | Gray | ||
| Outer Jacket | Material | New PE | |
| Color | Black | ||
| Diameter | 6.50 ± 5% | ||
| Outer Cable | Shielded Layer | First Layer | Non-woven Binder Tape |
| Second Layer | Galvanized Steel Wire Braid | ||
| Outer Sheath | Material | Urethane Special TPU / PUR / Orange | |
| Diameter | 10.00 ± 5% |
